14-wheel Tracked Platformwith A Load Capacity Of 5-7 Tons

朱氏は信頼である価値です彼はよいチームがあります、それらは私達によいサービスおよび信頼できる質ケーブルを提供します。

—— アーロン

朱氏はよい価格を私達に井戸の掘削装置に与えます。ありがとう。

—— ジュリアン

オンラインです

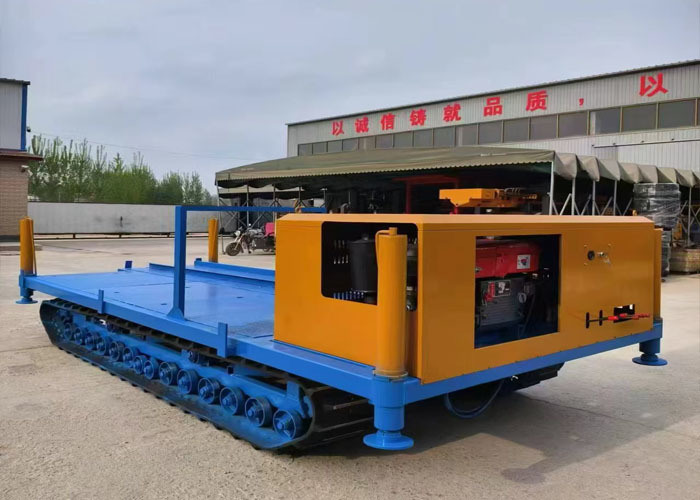

14-wheel Tracked Platformwith A Load Capacity Of 5-7 Tons

14-wheel Tracked Platformwith A Load Capacity Of 5-7 Tons

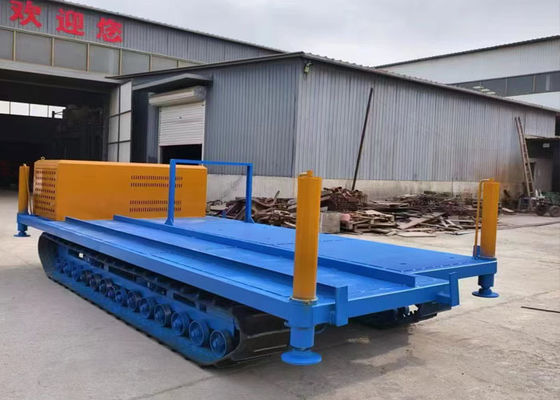

大画像 :  14-wheel Tracked Platformwith A Load Capacity Of 5-7 Tons

商品の詳細:
起源の場所: 錦州、中国
ブランド名: SHITAN
証明: ISO
モデル番号: カスタマイズされた無限軌道シャーシ
お支払配送条件:
最小注文数量: 1セット
価格: Customzied Quotation list
パッケージの詳細: 1*20 FCL
受渡し時間: 前払い後5〜10日
支払条件: T/T、ウェスタンユニオン
供給の能力: 1000セット/月
詳細製品概要
ブランド: Shitan 色: カスタマイズされた
トラックタイプ: スチール/ゴム OEM: 許容できる
力: ディーゼルエンジン 原産地:: 河北省、中国
保証: 12か月 販売サービス後: ビデオサポート
アプリケーション: 掘削リグ/マッドパブ スピード: カスタマイズされた
ハイライト:

14-wheel tracked platform

,

5-7 ton load capacity crawler

,

heavy-duty crawler track undercarriage

14-wheel Tracked Platform with A Load Capacity Of 5-7 Tons
This tracked chassis is designed for 5-7 ton equipment, featuring high-strength, wear-resistant rubber tracks with a balanced 14-wheel layout and a professional gearbox and running gear system, balancing load-bearing stability and maneuverability. The rubber tracks provide a soft ground contact with low ground pressure, making them suitable for mud, grass, gravel roads, and paved surfaces, minimizing ground damage and offering strong anti-sinking capabilities. Its compact structure and outstanding durability make it widely applicable in small to medium-sized engineering projects, landscaping, and emergency rescue scenarios, making it an optimal solution that balances heavy-duty requirements with multi-terrain adaptability.
Key Features
  • Rubber track material minimizes ground damage; suitable for both paved and unpaved roads
  • 14-wheel balanced layout ensures even force distribution and significantly improved driving stability
  • Transmission system provides smooth gear shifts and strong power output
  • Large contact area and low pressure reduce the risk of getting stuck on soft terrain
  • Easy operation and fast gear shift response adaptable to complex work scenarios and steering requirements
Technical Specifications
Specification Value
Compatible equipment Drilling rigs, air compressors, etc.
Crawler material Rubber
Drive system Gearbox drive
Climbing ability Max 30 degrees
Load capacity 5000-7000kg
Start method Electric start
Leg 1m
Transportation Method
  1. Flatbed trailers are preferred. Each vehicle should be laid flat on the trailer's load-bearing surface. For multiple vehicles, they must be separated into layers to prevent crushing and collisions.
  2. Short-distance transfers can be made by vehicle (but any debris attached to the tracks must be removed beforehand).
Product Images
Application Scenarios
